Hole punching

Electromagnetic hole punches

With the electromagnetic hole punch you can punch PE, BOPP, PP and many more into the running material webs, whereby speeds of up to 130 metres per minute are possible depending on the material.

The punches are driven by special high-performance magnets. The stations can be offered in different widths (20mm-120mm). In addition, the lateral hole spacings can be quartered by connecting up to 4 perforated beams (electronically synchronized) in series.



Path speed: up to 130m/min

Number of strokes: Up to 60 strokes/sec, depending on magnet design

Hole pattern positioning via photo marks (photo cell)

Programmable logic controller with high-quality touch screen

Matrix control (avoidance of holes in the print image)

Infinitely variable impact strengths (depending on material)

36 Program hole memory (can be called up via table)

Photo mark blanking for suppressing interference marks

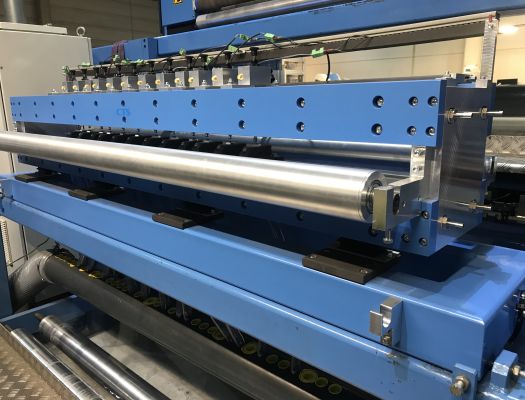

Pneumatic hole punching

With the pneumatic punching machine you can punch all kinds of foils such as LDPE, HDPE, PP, BOPP, PVC and many more on running material webs.

Depending on the material, the speeds can be up to 250 meters per minute. (depending on material and machine).

The device automatically adapts to the speed of the production line.

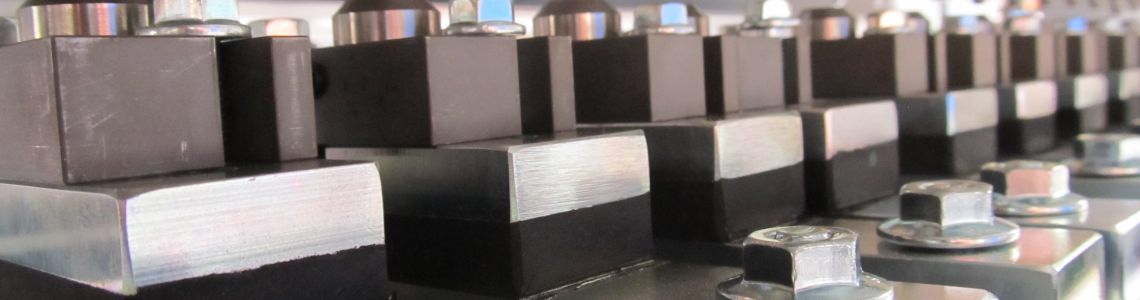

The punching tools are pneumatically controlled by specially developed electric valves. On a punching bar you can work up to a frequency of 70 strokes per second.

In addition, 4 perforated beams (electronically synchronized) can work together.

The hole punch works with a 4.0 electronic system, which can control up to 96 outputs (tools) individually. The electronic control is equipped with a touch screen and a PLC control, which allows an extremely simple operation of the machine. The remote maintenance functions allow direct communication. The touch screen makes it possible to monitor the speed of the material, the pressure register, the supply pressure and the performance and position of each individual hole. The data storage system allows you to store an almost unlimited number of production recipes. The system allows the realization of linear, zigzag and custom perforations.

Web speed: Up to 250 m/min

Number of strokes: up to 70 strokes/sec.

Hole pattern positioning via photo marks (photo cell)

Control with high-quality touch screen

Matrix control (avoidance of holes in the print image)

Infinitely variable impact strengths (depending on material)

Unlimited number of production recipes can be stored

Photo mark blanking for suppressing interference marks
